INDUSTRIAL CONTROL Programmable Logic Control Systems and Applications

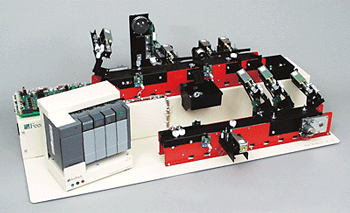

Dual Conveyor System. The Single Conveyor System is as shown with the lower conveyor removed.

PLC Training Systems Single Conveyor System (Mitsubishi) 34-001 Single Conveyor System (Allen Bradley) 34-002 Workcell (Mitsubishi) 34-003 Workcell (Allen Bradley) 34-004 Single Conveyor Application 34-100 Diameter Gauging Unit 34-110 PLC Workcell 34-120 PLC Workcell Upgrade 34-105 Industrial Process Fault Finding Trainer 34-250 PLC Applications PLC Applications (Washing Machine & Traffic Signal Control) 34-400 PLC Applications -Automatic Washing Machine 34-401 PLC Applications - Traffic Signal Control 34-402 PLC Interface 34-403 PLC's Mitsubishi Entry-level PLC Pack 34-351 Mitsubishi Advanced PLC Pack 34-352 Allen-Bradley Entry-level PLC Pack 34-361 Allen-Bradley Advanced PLC Pack 34-362

Features Industrially relevant PLC applications. Fully documented and supported teaching materials. Simple parts assembly applications. PLC control for advanced process system with analogue and digital control scenarios. Teaches fault diagnosis within process plant. A range of applications that can be interfaced to most modern PLC types. Supported by Mitsubishi and Allen-Bradley PLC systems.
