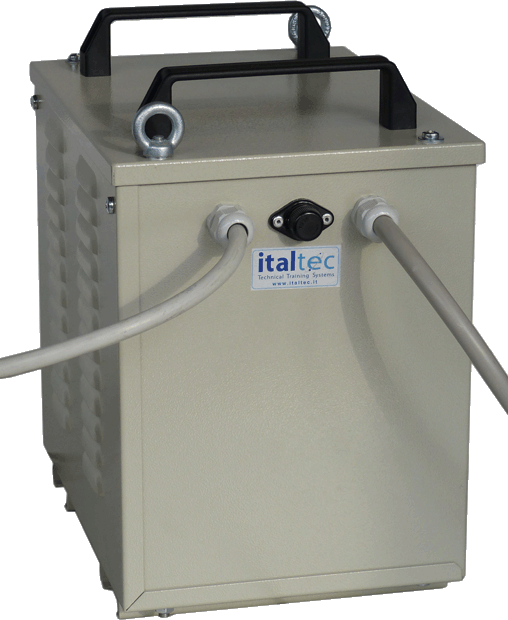

Three Phase Safety Transformers


Standard C.E.I. 14/6-96-2 IEC 742 - EN 60742
The Safety Transformers T3F-S are designed for supplying very low voltage circuits.
The nominal secondary voltage and them secondary voltage not under load must not exceed 50V
The three phase transformers are normally built with connection of the phases in star form and with the secondary neutral accessible
On request all possible connections
Dimensions can be varied according to available space 		Series production:
- Primary voltage between 50 to 600V
- Secondary voltage: between 0 to 50V
- Insulation class: E
- Protection: IP00;
- Frequency: 50/60 Hz
- Open execution
- Electrical protection class I
- Impregnation with resin
- Tropicalised
- Full data always refer to the max secondary voltage
Necessary data for quotation request or order:
a) power in V.A.
b) voltage and frequency of supply line;
c) secondary voltage
d) ambient temperature
e) operating conditions
Wiring diagrams primary/secondary
Safety Three Phase
Transformers
CodePower
VA		Prix (Euro)
T3F-S-200500155
T3F-S-201630181
T3F-S-2021k210
T3F-S-2031,5k261
T3F-S-2041,6k275
T3F-S-2052k323
T3F-S-2062,5k388
T3F-S-2073k486
Safety Three Phase
Transformers
CodePower
VA		Prix (Euro)
T3F-S-2084k624
T3F-S-2095k747
T3F-S-2106,3k853
T3F-S-2117,5k1.058
T3F-S-21210k1.210
T3F-S-21312,5k1.500
T3F-S-21415k1.798
T3F-S-21516k1.898
Price Validity: 31 dec 2012
Prices are referred for a single transformer as sample.
Pls ask prices for quantities
