Low Cost Regulated Power Supply |

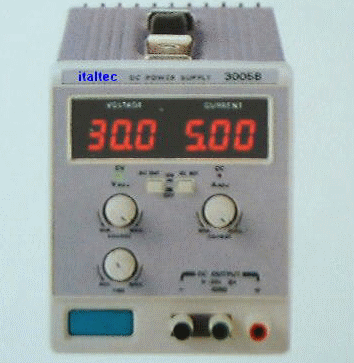

 | 1053 LABORATORY POWER SUPPLY Vu 0-30V Iu= 0-5A With digital voltmeter and ammeter to read the output voltage and current Double regulation gross and fine for voltage and current Line regulation; 0,2% for line variations +/- 10%; Load regulation: +/- 5mV for 0 to 100% Ripple: <1mV |

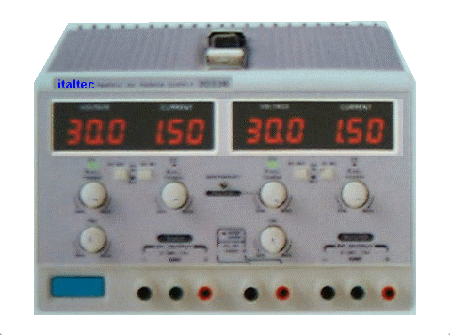

| 2053 DUAL POWER SUPPLY With tracking, serie and parallel Vu 2 x 0-30V; Iu 2 x 0-5A Switch for tracking use Parallel and serie switch to obtain single output of 0-30V; 0-10A or 0-60V 0-5A; With digital voltmeter and ammeter to read the output voltage and current Double regulation gross and fine for voltage and current Line regulation; 0,2% for variations +/- 10%; Load regulation: +/- 5mV for 0 to 100% Ripple: <1mV |  |
 | 3053 - TRIPLE OUTPUT POWER SUPPLY With tracking, serie and parallel Vu 2 x 0-30V; Iu 2 x 0-5A 1 x 5V, 3A Switch for tracking use Parallel and serie switch to obtain single output of 0-30V; 0-10A or 0-60V 0-5A; With digital voltmeter and ammeter to read the output voltage and current Double regulation gross and fine for voltage and current Line regulation; 0,2% for variations +/- 10%; Load regulation: +/- 5mV for 0 to 100% Ripple: <1mV |
 | AC POWER SUPPLY All models with continous voltage variation With voltmeter and ammeter to read the output voltage and current Output protected with magnetothermal circuit breaker or fuses AC models Vu 0-250V AC 1PH 1-2-5-10-13A Vu 0-430V AC 3PH 1-3-5-10-13-20A Vu 0 - 50V AC 1PH 5 to 100A (insulated) Vu 0 - 50V AC 3PH 5 to 100A (insulated) DC models unregulated, with ripple 4% Vu 0-250 DC 1-5-10-13-20A Vu 0-50V DC 5 to 100A (insulated) SPECIAL MODEL ON REQUEST |
