E.M.M.S. Electrical Machines Modular System 0,3 kW
A.C.
Power Supply Module MOD.3002 |

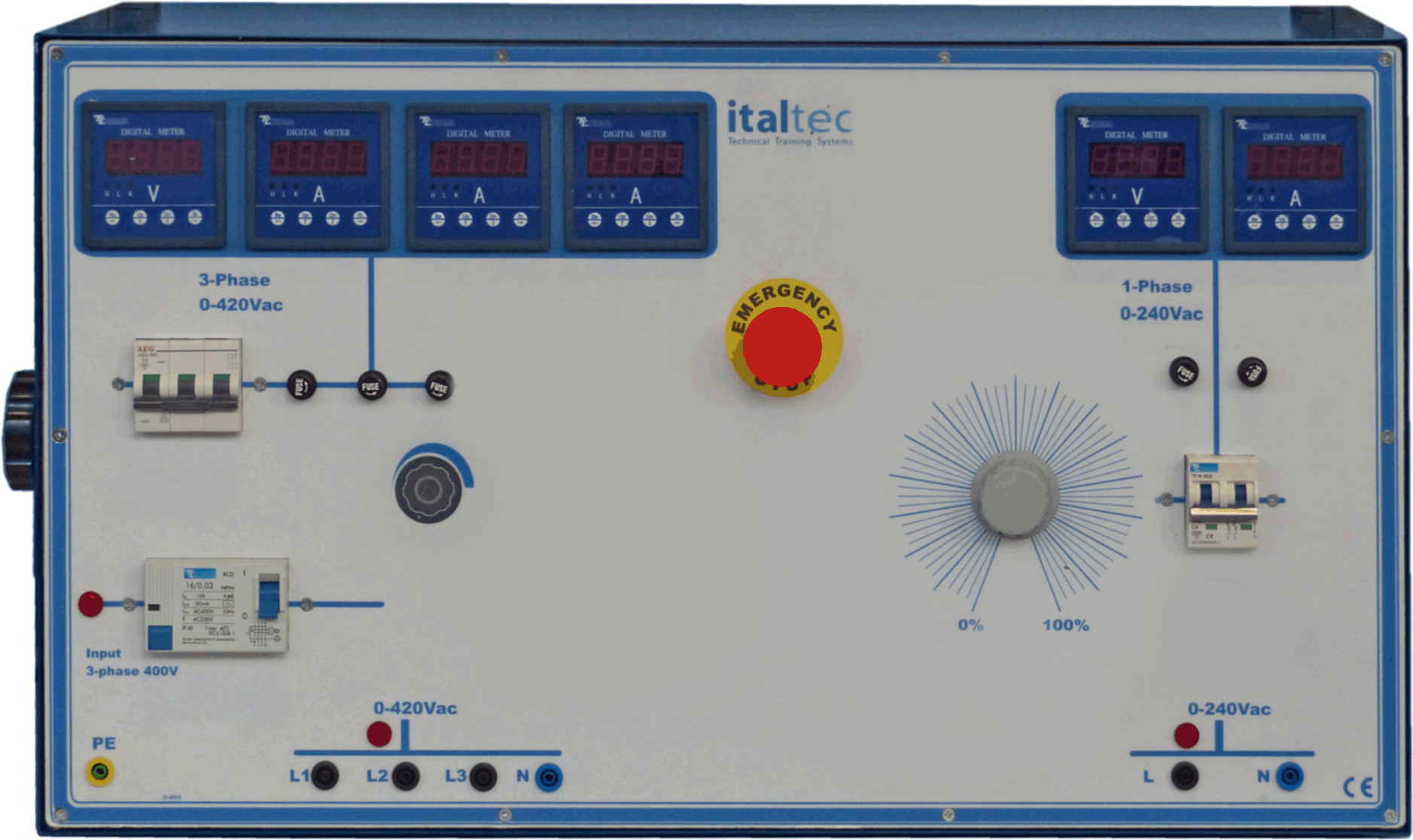

Mod.3002D (with digital instruments)
|
MOD.3002 - A.C. power supply
It is used for electrical supply of all A.C. 0,3kW EMMS machines.
- Power requirements: 380/415V, 3PH + N + PE;
- General protection with high sensitivity magneto thermal differential (0,03A)
automatic circuit breaker.
- Mushroom emergency push-button;
- Key consent for all outputs
- All outputs are protected by means of automatic magneto thermal circuit
breaker.
- Analog or digital instruments
OUTPUTS:
3 phase adjustable output: 0-400 1A; L1, L2, L3, N, PE
- protection with magneto thermal automatic circuit
breaker.
- with 1 x A.C. voltmeter
- with 3 x A.C. ammeters (one on each phase);
Single phase adjustable output: 0-230V 2A.
- protection with magneto thermal automatic circuit
breaker.
- with 1 x A.C. voltmeter;
- with 1 x A.C. ammeter;
- 1 service single-phase safety universal socket 10/16A.
Dimensions: LxWxH: 50 x 35 x 35cm; Weight: 18kg;
|
|
-All power supply (standard models):
|
Code |
3-Phase Variable
|
1-Phase Variabile
|
DC
Variable
|
1-Phase
Fix
|
DC
Fix
|
|
Mod.0000
|
0-48V - 10A
|
0-48V - 10A
|
0-36V - 2A
|
24V - 10A
|
36V - 4A
|
|
Mod.3000
|
0-420V - 2A
|
0-240V - 2A
|
0-230V - 1A
|
230V - 16A
|
220V - 3A
|
|
Mod.4000
|
0-420V - 3A
|
0-240V - 4A
|
0-230V -1,2A
|
230V -16A
|
220V - 5A
|
|
Mod.5000
|
0-420V - 5A
|
0-240V - 8A
|
0-230V - 2A
|
230V - 16A
|
220V - 5A
|
|
Mod.6000
|
0-450V - 8A
|
0-240V - 10A
|
0-230V - 2A
|
230V - 16A
|
220V - 10A
|
|
Mod.7000
|
0-450V - 10A
|
0-240V - 13A
|
0-240V - 3A
|
230V - 25A
|
220V - 15A
|
|
Mod.8000
|
0-450V - 13A
|
0-250V - 16A
|
0-240V - 5A
|
230V - 25A
|
220V - 20A
|
|
Mod.9000
|
0-450V - 20A
|
0-250V - 25A
|
0-240V - 8A
|
230V - 25A
|
220V - 20A
|
In addition to standard solutions, other desk can be realized on request.
