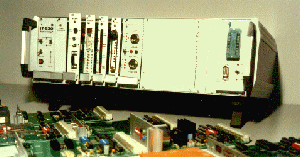

Microprocessor Developping System

Beginner's basic configuration, includes the following modules and accessories:
    - IT.0830.ED basic module including:
  • -CPU module;
  • -Control module;
  • -HEXADECIMAL keyboard;
  • -Special functions keyboard;
  • -Power supply module for basic unit and for all add-on modules;
  • - IT.0830.SW software;
  • - IT.0830.MA exercises book with theory and practical lessons;

ADD-ON TRAINER'S MODULES

IT.0840.ED COMMUNICATION & DRIVE CONTROL MODULE
    This module includes:
  • - 1 CENTRONICS port;
  • - 2 drive controllers for 3"1/2 floppy drives.
  • - 2 RS 232C serial ports
    This module is necessary for:
  • - to connect a printer;
  • - to install the floppy disk module IT.0849.ED on the system without use the connection to PC.

Back to index

IT.0842.ED COMMUNICATION MODULE
It includes 2 RS 232 serial lines
This module allow the system to be connected to a TERMINAL or PC and to be used in connection with all the other IT.0830.ED if required

IT.0844.ED SERVICE MODULE
Designed to link the serial outputs or the parallel output or the drives for floppy.
This module should be used only in presence of module IT.0840.ED

IT.0850.ED MODULE FOR 8 POWER OUTPUTS WITH 8 RELAYS

It's suitable for controlling up to 8 outputs 250V, 5A directly.
It includes a 24 contacts terminal strip and a 7 segment display.

IT.0852.ED OUTPUT MODULE WITH 32 LEDS
It's usable to check the running of INPUT or OUTPUTS routines.
Complete of interface and instruction book.

IT.0854.ED D/A OUTPUT MODULE, SINGLE CHANNEL
It's usable to realise D/A conversions by means of 8 bit converter.
Output voltage: +9, 0, -9V;
Complete of interface and instructions book.

IT.0856.ED ELECTRICAL MOTOR CONTROL'S MODULE
It's suitable for driving up a DC motor 12V, 500mA.
It is possible to control acceleration and speed of the motor.
Delivered complete of motor, interface and instruction book

IT.0860.ED 8 SENSORS INPUT MODULE
It's suitable for input signal from transducers as proximity, opto insulators, and all device. Input signal: 0-4V or 0-20mA;

IT.0862.ED 8 SWITCHES INPUT MODULE
It's includes 8 FLIP-FLOP anti bounce circuit which allows to choose a predetermined input identified from the software's system. Free address choice.
The module it is complete with interface and instruction book.

IT.0864.ED 8 CHANNELS A/D INPUT MODULE
For data acquisition of analogues signals on 8 channels.
Input voltage: 0-5V;
This module, in union with 0856 module, allows to realise many experience on position control.
Complete of interface and instruction book.

IT.0870.ED PROTOTYPE MODULE
It has been planned for students in order to execute practical exercises.
It's also useful to extend the system and to work as in industry, when a prototype is designed and it required many modification and component variations

IT.0872.ED PROTOTYPE MODULE WITH INTERFACE AND MULTI CONTACT BREAD BOARD
It's very useful to students in order to quicken wiring practical exercises.
It can also be used to expand the system.

IT.0874.ED EXTENSION MODULE
It's usable to make longer other boards to allow the practical study and the setting in more easy way.

IT.0876.ED EPROM PROGRAMMER MODULE
This module allows to program the EPROM by transferring the 0830 memory contains.
It is possible to program all EPROM from 2732 up to 27512

IT.0877.ED EPROM ERASER
Usable to cancel up to 10 EPROM contemporaneously.
Eyes protection against ultra-violet rays.

IT.0830.SW - SOFTWARE
It is the software included in all exercitations developed for 0830 system.
It includes:
- Operative system;
- Transmission software to communicate with all IT.0830.ED systems when are in NETWORK connection;
- Cross-assembler for Z80 uP;
- BASIC;
- CROSS-TALK at 19.200 BAUD which allows to use any PC MS- DOS as VIDEO TERMINAL for 0830 system.
M 64k x 8bit;
Peripheral IC 8253, 8255, 8259, 8279
CLK 8284 (6MHz) The 50 keys keyboard has repeat function;
Display: 24x2 lines LCD DOT matrix;
50 pins main expansion slot; 40 pins CPU control port;
40 pins 8255 & 8259 I/O port;
8 pins memory expansion port;
Tape recorder interface built-in;
Main PC board size: 246x165x30mm;
Language used: ASSEMBLY;
Operation & teacher handbook ;


Copyright © 1995, italtec srl.
