EMMS6 - Electrical Machines Modular System 3kW

E.M.M.S. 6 - Electrical Machines Modular System 3 kW

Starters, Field Regulators & Variable Loads

MOD.6010 Starter for dc motor 2-3kW; Resistance: 0-100% ohm, linear; Duty cycle 100% ; Load carrying capacity: suitable for rpm setting of 80% at full torque; Inputs/Outputs: 4 mm safety sockets; Unit type: table top unit; Dimensions: LxWxH: 25 x 27 x 12cm.

MOD.6011 Starter rheostat for slip ring and cage 3-phase motor 2-3kW; Resistance: 3 x 0-100% ohm continuously variable; Power 3 x 320W; Duty cycle: 80%; Inputs/Outputs: 4 mm safety sockets; Unit type: table top unit;

MOD.6012 Field regulator for a.c. and d.c. motors 2,2-3kW; Resistance: 0-100% linear, continuously variable; Duty cycle: 100%; Nominal power:160W; Inputs/Outputs: 4 mm safety sockets; Unit type: table top unit;

MOD.6013 Field regulator for a.c. and d.c. generators 2,2-3kW Resistance: 0-100% linear, continuously variable; Nominal power:160W; Inputs/Outputs: 4 mm safety sockets; Unit type: table top unit;

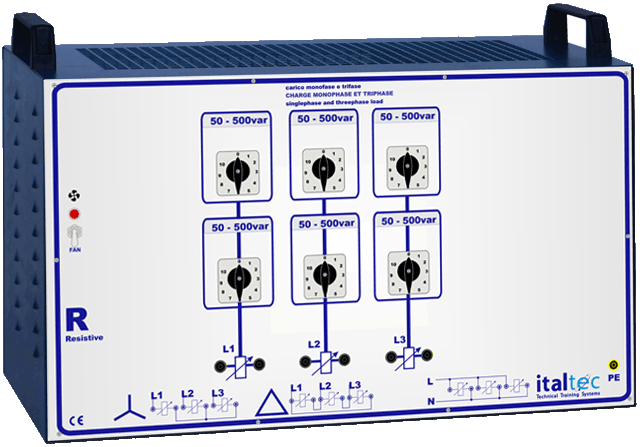

MOD. 6020-R20
Load resistive for dynamos and Starter for DC motor; load for three-phase alternator;
Variable resistance 3 x 5%-100%;
Variable with 20 regulation step from 5% to 100%;
Power: 3000 W;
Inputs/outputs on 4 mm safety Sockets;
Table-top;
Dimensions: 70x40x40cm;

MOD.6020-LC20
Load for three-phase alternator;
Variable resistance 3 x 5%-100%;
Variable with 20 regulation step from 5% to 100%;
Power: 3000 W;
Inputs/outputs on 4 mm safety Sockets;
Table-top;
Dimensions: 70x40x40cm;

MOD. 6020-R110
Load resistive for dynamos and Starter for DC motor; load for three-phase alternator;
Variable resistance 3 x 1%-110%;
Variable with 110 regulation step from 1% to 110%;
Power: 3300 W;
Inputs/outputs on 4 mm safety Sockets;
Table-top;
Dimensions: 70x40x40cm;

MOD.6020-LC110
Load for three-phase alternator;
Variable resistance 3 x 1%-110%;
Variable with 110 regulation step from 1% to 110%;
Power: 3300 W;
Inputs/outputs on 4 mm safety Sockets;
Table-top;
Dimensions: 70x40x40cm;
