MOD.4230 DC Speed Regulator Module This module allows the student to experiment on open and closed loop regulation d.c. motors used as actuators in automation. The module includes a current limiter with adjustable gain and variable starting time and variable torque control. Operative voltage: 200-250V. Dimensions: LxWxH: 25x25x15cm Weight: 4kg.

	MOD.5230 DC Speed Regulator Module This module allows the student to experiment on open and closed loop regulation D.C. motors up 2,5kW used as actuators in automation, robotics etc. The module includes a current limiter with adjustable gain and variable starting time and variable torque control. Operative voltage: 200-250V. Dimensions: LxWxH: 25x25x15cm Weight: 5kg.

MOD.4240 AC Speed Regulator Module for three-phase motors up to 2,2kW. This module allows the student to experiment on open and closed loop regulation a.c. motors used as actuators in automation, robotics etc. The module has all the programmable features of an industrial inverter such as current limiter, adjustable gain and variable starting time. Operative voltages: 208/380/415V Dimensions: LxWxH: 50x30x25 cm Weight: 8kg.

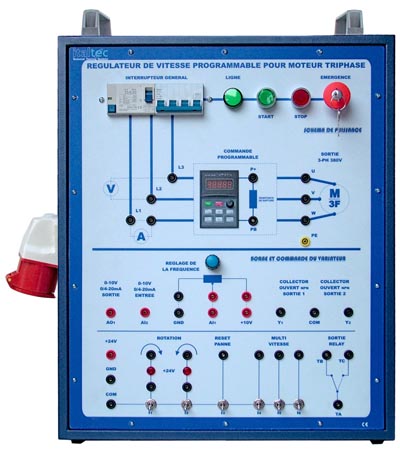

MOD.5240 AC Speed Regulator Module for three-phase motors up to 2,2kW. This module allows the student to experiment on open and closed loop regulation a.c. motors used as actuators in automation, robotics etc. It is based on an industrial frequency converter. All the device I/O (digital and analog) are repeated on the front panel and can be fully programmed by the user in order to fit the project to be realized. Operative voltages: 208/380/415V Dimensions: LxWxH: 60x30x50cm Weight: 16kg.
