E.M.M.S. 4- Electrical Machines Modular System 1 kW
A.C. Machines

EMMS Machine details

AC electrical machines characteristics :

  • Design: with typical industrial characteristics
  • Complete with base plate
  • Input/output with standard 4 mm safety sockets
  • Imprinted terminal boards with the synoptic
  • Two shaft ends on request
  • Cover for inspection of collector-brush area
  • Protection against thermal overload
  • With coupling cog for easy engagement with other machine
  • Manual explaining theory and practice for laboratory experiments included

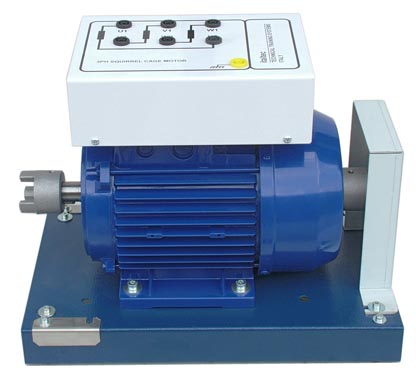

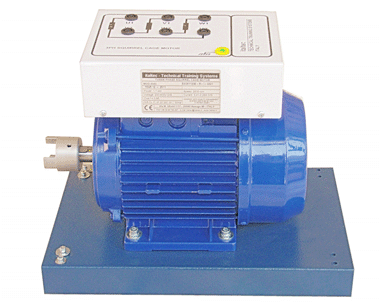

    • MOD.4040
    3-Phase Squirrel Cage Motor 1,1kW

    Nominal voltage: 220/380/400V; delta/star / 50Hz;
    Nominal speed: 2800rpm;
    Nominal power: 1,1kW;
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 11,0 Kg;

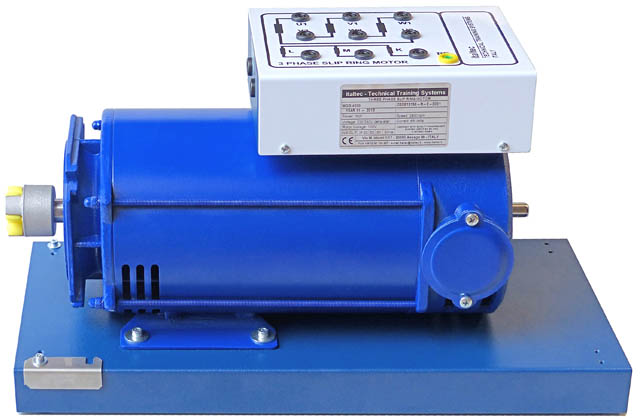

    MOD.4050
    3-phase Slip Ring
    Asynchronous Motor 1kW;

    Nominal voltage: 220/380/400V (delta/star) / 50Hz;
    Nominal speed: 2920rpm;
    Nominal power: 1kW;
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 13,5 Kg

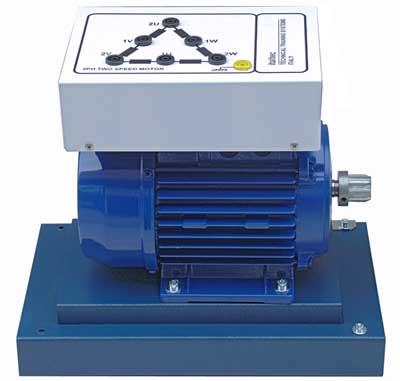

    MOD.4060 3-Phase Dahlander Motor
    2/4 Poles 1kW/0,6kW
    		 Nominal voltage: 380/400V (delta/ star-star) / 50Hz;
    Nominal speed: 2860/1430 rpm;
    Nominal power: 1kW/ 0,6kW;Cos phi: 0,62 / 0,73
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 14,0 Kg
    MOD.4065 3-Phase motor 4/6 Poles
    Two separate windings 0,8kW
    		 Nominal voltage: 380/400V (star/star) / 50Hz;
    Nominal speed:1380/960rpm;
    Nominal power: 0,8/0,5kW;
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 15,0 Kg
    MOD.4070
    Three Phase
    Synchronous Generator 1kVA
    		 Modes: motor, generator
    Nominal voltage: 220/380/400V/50Hz (delta/star)
    Excitation voltage: 210V;
    Nominal speed: 3000rpm;
    Nominal power: 1kVA; Cos phi: 1
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 16 kg
    MOD.4074 Three Phase
    Synchronous Generator 1kVA
    Modes: motor, generator
    Nominal voltage: 220/380/400V/50Hz (delta/star)
    Excitation voltage: 200V;
    Nominal speed: 3000rpm;
    Nominal power: 1kVA; Cos phi: 1
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 16 kg
    MOD.4072 Single Phase
    Synchronous Generator 0,6kVA
    Nominal voltage: 220/230V a.c.;
    Exciting voltage: 200V d.c.
    Speed: 3000rpm;
    Nominal power: 0,6kVA; Cos phi: 1
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 16,0 Kg
    MOD.4080 3-phase
    Reluctance Motor 1kW
    		 Nominal voltage: 220V/380/400V (delta/star) / 50Hz
    Nominal speed: 3000rpm;
    Nominal power: 1kW; Cos phi: 0,37
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 15 kg
    MOD.4090 Single Phase a.c.
    Capacitor Run Motor 1kW
    		 Nominal voltage: 220/230V a.c.;
    Speed: 2800rpm;

    Dimensions: LxWxH: 40x21x19cm;
    Weight: 14 Kg
    MOD.4095 Single Phase a.c.
    Capacitor Start/Run Motor 1kW
    		 Nominal voltage: 220/230V a.c.;
    Speed: 2800rpm;

    Dimensions: LxWxH: 40x21x19cm;
    Weight: 14 Kg
    MOD.4100 Single Phase
    Repulsion Motor 0,3kW
    		 Motor with infinitely variable speed in both direction
    Nominal voltage: 220/230V single-phase; 50Hz;
    Nominal speed: 2100rpm;
    Nominal power: 0,3kW; Cos phi: 0,85
    Dimensions: LxWxH: 40x21x19 cm;
    Weight: 9,5 Kg
    MOD.4110 Single Phase A.C.
    Split Motor 0,8kW
    		 Ac motor with bifilar winding
    With start-up relay.
    Nominal voltage: 220/230V a.c. 1-phase; 50Hz;
    Nominal speed: 2880rpm;
    Nominal power: 0,7kW; Cos phi: 0,73
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 14 Kg
    MOD.4120
    Single Phase Induction Motor
    Capacitor Start/Run 1kW
    		 With starting relay.
    Nominal voltage: 220V a.c. single-phase / 50Hz;
    Speed: 2815 rpm;
    Nominal power: 1 kW
    Cos phi: 0,94
    Dimensions: LxWxH: 40x21x19cm;
    Weight: 14,5 Kg
    MOD.4130
    Universal Motor 0,8kW

    Modes: DC & AC motor/generator, series Nominal voltage: 220V;DC/AC Nominal speed: 3000rpm; Cos Ø: 0,6
    Nominal power: 0,8kW
    Protection category: IP20
    Inputs/Outputs: 4 mm safety sockets;
    Dimensions: LxWxH: 40x 21x19 cm;
    Weight: 15,5 kg
    MOD.4040                    MOD.4050

    MOD.4120
    MOD.4060          MOD.4072

    MOD.4130
