Laboratory desk according to C.E. rules

Complete power panels for laboratories of electrotechnics and electronics, for testing of all electrical machines.

Pulpits with single-phase, three-phase and direct current supply. Possibility of voltage variation for all needs, complete set of tools for measuring, extensive safety equipment.
Desks with benches for electrical measurements and laboratory tests on electrical machines, manufactured according to the safety rules for laboratories, ready to be plugged into the mains. They consist of a basic bench + table built with wooden double laminate with rounded corners. Size cm 100x35x35. It is possible to allocate one central pulpit, or two, side by side, or a pulpit on the minor side of 100 cm, to allow the collective work of 4-5 students.

The electric charachteristics can be choosen according the differents codes among MOD.0000 and MOD.9000.
All desk are complete of emergency mushroom and switch with consent key to ensure the maximum security level.
In addition to standard solutions, other desk can be realised on request.
1
Emergency Mushroom
Allows the arrest ofonly one bench without disturbing the others.
2
General
Magneto Thermal Switch 4 poles + differential 30mA
A pilot lamp show the voltage presence.

4
3 phase variable output
Variable auto transformer with over charge and short circuit protection.
General Three Phase Magneto Thermal Switch.
The voltage is 0-430V phase-phase. Protected by magneto termal automatic switch (12)
Current 2A to 20A, according to the codes.
Output indication on 1 Voltmeter and 3 Ammeters analogues or digital
5

11
Single Phase
0-250V variable single phase protected by a 2-poles magneto thermal automatic switch (11).
Output indication on 1 voltmetre and one ammeter analogues or digital.
Intensity from 2A to 20 A, according to the code
6

10
D.C. Variable Output
0-220V D.C. variable protected against over charge and short circuits by a 2-poles magneto thermal automatic switch. (10)
Output indication on 1 voltmetre and 1 ammeter analogue or digital.
Intensity from 2A to 20 A, according to the code
7

9a
DC Fix Output 220V
Obtained from three phase bridge with a ripple of 4%
Protected against over charge and short circuits by means of magneto thermal tripolaire (9A).
Output indication on 1 voltmetre and 1 ammeter analogue or digital.
Intensity from 2A to 20 A, according to the code
8
9b
 Single Phase output 230V Protected against over charge and short circuits by means of magneto thermal tripolaire (9B).
Output indication on 1 voltmetre and 1 ammeter analogue or digital.
Intensity from 2A to 20 A, according the code
12
Security Key Switch
On-Off, to ensure the start-up with memory function for high security.
A warning light indicates the presence of voltage.
13
 Voltmeter and Ammeter Voltmeter and Ammeter analogues or digital according to custom preferences.
 - Standard models

               -   Mod.3000 -

Code		 3-Phase Variable
1-Phase Variabile
DC
Variable
1-Phase
Fix
DC
Fix
Mod.0000 0-48V - 10A 0-48V - 10A 0-36V - 2A 24V - 10A 36V - 4A
Mod.3000 0-420V - 2A 0-240V - 2A 0-230V - 1A 230V - 16A 220V - 3A
Mod.4000 0-420V - 3A 0-240V - 4A 0-230V -1,2A 230V -16A 220V - 5A
Mod.5000 0-420V - 5A 0-240V - 8A 0-230V - 2A 230V - 16A 220V - 5A
Mod.6000 0-450V - 8A 0-240V - 10A 0-230V - 2A 230V - 16A 220V - 10A
Mod.7000 0-450V - 10A 0-240V - 13A 0-240V - 3A 230V - 25A 220V - 15A
Mod.8000 0-450V - 13A 0-250V - 16A 0-240V - 5A 230V - 25A 220V - 20A
Mod.9000 0-450V - 20A 0-250V - 25A 0-240V - 8A 230V - 25A 220V - 20A

               -   Mod.6000/9000


IT.0500T
-TABLE TOP POWER SUPPLY ac/dc
Single-phase, three-phase supply, direct current. With of voltage variation for all output, complete set of tools and safety equipment. Dimensions : 70x40x40cm
Made of metal cabinet on casters, carefully treated and rust structure painted with epoxy paint. Commands and the outputs are mounted on the front panel which shows a clear screen printed synoptic with the internal circuitry.
The power input is on 5-pin connector in compliance with CE regulations.
Protections are realized with circuit breakers and with consensus.
Emergency and fungus elcb of 30 mA are included.

Features:
Three phase power supply : 400V + N + Earth.
Two active outputs on 4mm safety sockets

Output 1 :
- Three-phase variable: 0-450V with voltmeter and three ammeters.
- Single-phase variable: 0-250V with voltmeter and ammeter.
- Variable DC output: 0-250V with voltmeter.

Output 2 :
- Single-phase variable: 0-240V with voltmeter and ammeter.
- Variable DC output: 0-230V with voltmeter.

Code
3-Ph
Variable
1-Ph
Variable
DC
Variable
1-Ph
Variable
DC
Variable
IT.0500T-ELV 0-48V - 15A 0-28V - 15A 0-70V - 15A 0-49V - 15A 0-49V - 15A
IT.0500T-2-4 0-420V - 2A 0-240V - 2A 0-250V - 5A 0-240V - 4A 0-230V - 4A
IT.0500T-3-5 0-420V - 3A 0-240V - 3A 0-250V - 5A 0-240V - 5A 0-230V - 5A
IT.0500T-5-5 0-450V - 5A 0-250V - 5A 0-250V - 10A 0-240V - 5A 0-230V - 5A
IT.0500T-8-8 0-450V - 8A 0-250V - 8A 0-250V - 10A 0-240V - 8A 0-230V - 8A
IT.0500T-8-10 0-450V - 8A 0-240V - 8A 0-250V - 10A 0-240V - 10A 0-230V - 10A
IT.0500T-10-4 0-450V - 10A 0-250V - 10A 0-250V - 20A 0-240V - 4A 0-230V - 4A
IT.0500T-5-14 0-450V - 5A 0-250V - 5A 0-250V - 10A 0-240V - 14A 0-230V - 14A

-----

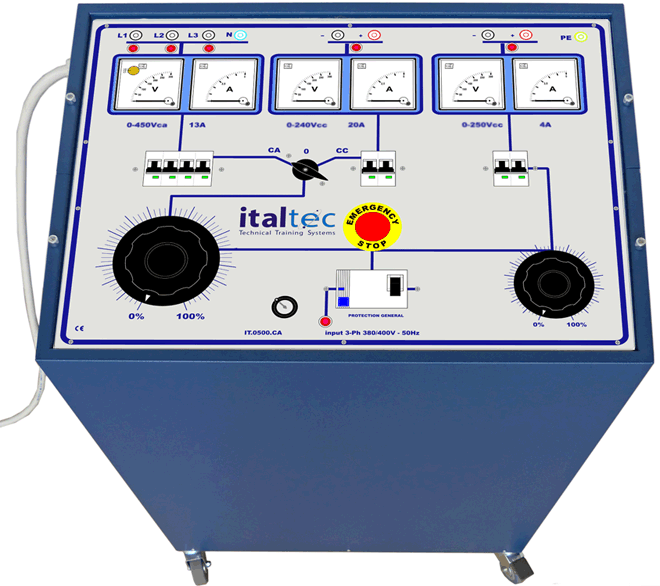

IT.0500
-WHEELED POWER SUPPLY for ELECTRICAL ENGINEERING
Single-phase, three-phase supply and direct current . With voltage variation for ac and dc output, complete set of tools and safety equipment.
Made of metal cabinet on casters, carefully treated and rust structure painted with epoxy paint. Commands and the outputs are mounted on the front panel which shows a clear screen printed synoptic with the internal circuitry.
Power input with 5-pin connector in compliance with CE regulations.
Protections are realized with circuit breakers and with consensus.
Emergency with fungus and elcb protection of 30 mA are available on request.

Features:
Three phase power supply: 380/400/415V + N + Earth.
Analog or digital instruments on request.
Protection on input with magneto-thermic and with fuses on output.
Outputs on 4 mm safety sockets:
-1-Three-phase and mono variable output: with voltmeter and ammeter.
-2-Single-phase variable output: with Voltmeter and ammeter.
-3-Direct current variable output: 0-250v with voltmeter and ammeter.
-4-Direct current variable output: 0-230v with voltmeter and ammeter.
-5-optional fixed direct current output: 220v with ammeter.
-6-optional single-phase fixed output: 230v with ammeter.

Code		 3-Ph / 1-Ph (1)
Variable 		DC (3)
Variable 		1-Ph (2)
Variable 		DC (4)
Variable
IT.0500-ELV 0-48V - 15A 0-28V-15A 0-70V - 15A 0-49V - 15A 0-49V - 15A
IT.0500-2-4 0-420V - 2A 0-240V-2A 0-250V - 5A 0-240V - 4A 0-230V - 4A
IT.0500-3-5 0-420V - 3A 0-240V-3A 0-250V - 5A 0-240V - 5A 0-230V - 5A
IT.0500-5-5 0-450V - 5A 0-250V-5A 0-250V - 10A 0-240V - 5A 0-230V - 5A
IT.0500-8-8 0-450V - 8A 0-250V-8A 0-250V - 10A 0-240V - 8A 0-230V - 8A
IT.0500-10-10 0-450V - 10A 0-240V-10A 0-250V - 20A 0-240V - 10A 0-230V - 10A
IT.0500-14-4 0-450V - 14A 0-250V-14A 0-250V - 20A 0-240V - 4A 0-230V - 4A
IT.0500-25-2 0-450V - 25A 0-250V-25A 0-250V - 25A 0-240V - 2A 0-230V - 2A


IT.0501
-WHEELED POWER SUPPLY for ELECTRICAL ENGINEERING
Two three-phase supply and two direct current supply. Possibility of voltage variation on all output, complete set of tools and safety equipment.

Features:
Three phase power supply: 380/400/415V + N + Earth.
Analog or digital instruments on request.
Protection on input with magneto-thermic and with fuses on output.

Outputs on 4 mm safety sockets:
-1-Three-phase and mono variable output: with voltmeter and ammeter.
-2-Three-phase and 1-phase variable output: with voltmeter and ammeter.
-3-Direct current variable output: 0-250v with voltmeter and ammeter.
-4-Direct current variable output: 0-230v with voltmeter and ammeter.
-5-optional fixed direct current output: 220v with ammeter.
-6-optional single-phase fixed output: 230v with ammeter.

Code		 3-Ph / 1-Ph (1)
Variable 		DC (3)
Variable 		3-Ph (2)
Variable 		DC (4)
Variable
IT.0501-ELV 0-48V - 15A 0-28V-15A 0-70V - 15A 0-49V - 15A 0-49V - 15A
IT.0501-4-2 0-420V - 4A 0-240V-4A 0-250V - 5A 0-420V - 2A 0-230V - 2A
IT.0501-5-3 0-420V - 5A 0-240V-5A 0-250V - 10A 0-420V - 3A 0-230V - 3A
IT.0501-6-4 0-450V - 6A 0-250V-6A 0-250V - 10A 0-420V - 4A 0-230V - 10A
IT.0501-8-2 0-450V - 8A 0-250V-8A 0-250V - 10A 0-420V - 2A 0-230V - 2A
IT.0501-10-5 0-450V - 10A 0-240V-10A 0-250V - 20A 0-420V - 5A 0-230V - 5A
IT.0501-13-3 0-450V - 13A 0-250V-13A 0-250V - 20A 0-420V - 3A 0-230V - 5A
IT.0501-14-2 0-450V - 14A 0-250V-14A 0-250V - 25A 0-420V - 2A 0-230V - 5A
---------
IT.0505D.5-5 -POWER SUPPLY ac/dc

Single-phase, three-phase supply direct current. Outputs with continuous voltage variation, extensive equipment of tools and safety equipment.
With analog or digital instruments.
Available with power from 1 to 10Kw
Dimensions : 100x35x48(h)cm
IT.0506D.5-2 -POWER SUPPLY for ac/dc

Single-phase, three-phase supply direct current. Outputs with continuous voltage variation, extensive equipment of tools and safety equipment.
Available with power from 1 to 10Kw
With analog or digital instruments.
Dimensions : 100x35x48(h)cm

IT.3000.09
-POWER SUPPLY ac/dc

Single-phase, three-phase supply direct current. Outputs with continuous voltage variation, extensive equipment of tools and safety equipment.

IT.3002
-POWER SUPPLY for ac/dc

Single-phase, three-phase supply with voltage variation, extensive equipment of tools and safety equipment.


IT.0701
- POWER SUPPLY 07

Single-phase, three-phase supply, direct current. Voltage variation for dc with voltmeter and ammeter.
IT.0702
- POWER SUPPLY 07

Single-phase supply, direct current. Voltage variation for dc with voltmeter and ammeter.
IT.0306
- POWER SUPPLY for 0306


Three-phase & Single-phase supply, direct current. Voltage variation for ac and dc with voltmeter and ammeter.
IT.0541-CA-CC
- DESK TOP PORTABLE POWER SUPPLY

Single-phase-ac and direct current, voltage variation, voltmeter and ammeter.

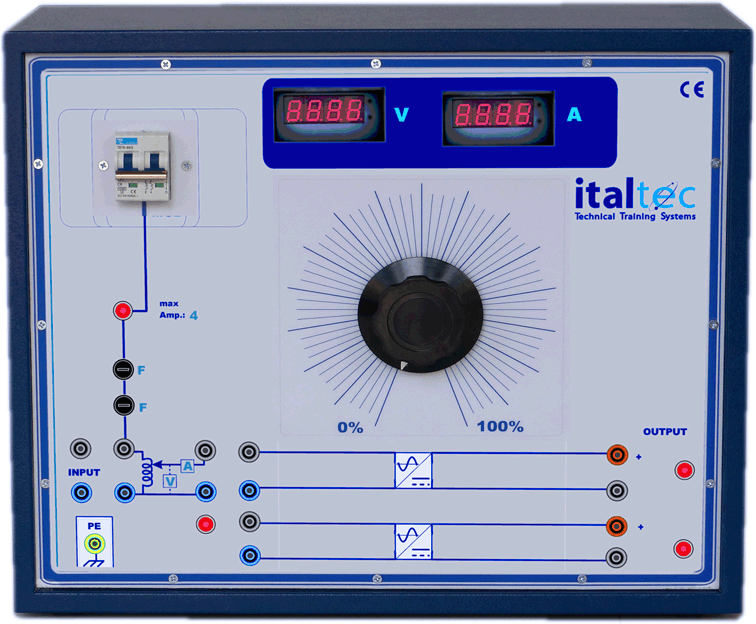

IT.0542-CA-CC
- DESKTOP DIGITAL POWER SUPPLY

Single-phase-ac and direct current, voltage variation, digital voltmeter and ammeter.
With double protection: MCB and overload and short circuit protection.
-Input: 230V-50-60Hz
-Output:0-250V(ac and dc)
-Two integrated rectifiers
-Integrated digital voltmeter and ammeter
IT.0546-CA-CC
- DESKTOP PORTABLE POWER SUPPLY

Three-phase, Single-phase-ac and direct current(ripple<4,2%), voltage variation, voltmeter and ammeter.

IT.0548-4508-DC20
- DESKTOP POWER SUPPLY

Three-phase input 400V, output 0-450Volt up to 8Amp. with digital multimeter. Direct current module with double output voltage 2A(ripple<4%) and 20A(ripple<12%) with voltmeters and ammeters.
