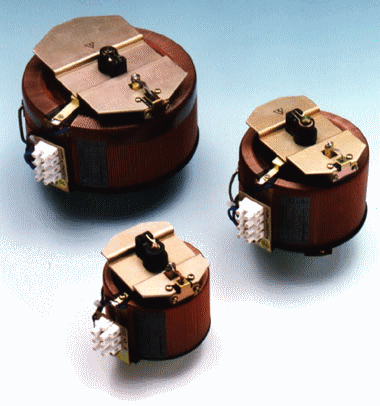

Single Phase Variable Transformers
(Industrial version for panel assembly) |
italtec |
|
|
Frequency range: 50 to 400 Hz
Test voltage:
2,5kV (AC 50Hz)
between metal and live parts
Protection class: I
(Protective earthing)
Special winding
on request
Input 230V;
Output 0-230 or 0-260
Output current
from 1 to 32A
|
|---|
Input 230V
Output 0 - 230V |
Input 230V
Output 0 - 260V |
Mass
(kg) |
Model |
| Type |
I (A) |
P (VA) |
Type |
I (A) |
P (VA) |
| HSG 230/1 |
1,0 |
230 |
HSG 260/0,8 |
0,8 |
208 |
1,4 |
M15/M10
M15/3xM4 |
| HSG 230/1,25 |
1,25 |
287 |
HSG 260/1 |
1,0 |
260 |
| HSG 230/1,6 |
1,6 |
368 |
HSG 260/1,4 |
1,4 |
364 |
2,4 |
M30/M10
M30/3xM4 |
| HSG 230/2 |
2,0 |
456 |
HSG 260/1,6 |
1,6 |
416 |
| HSG 230/2,5 |
2,5 |
575 |
HSG 260/2 |
2,0 |
520 |
| HSG 230/3 |
3,0 |
690 |
HSG 260/2,5 |
2,5 |
650 |
3,5 |
M50 |
| HSG 230/4 |
4,0 |
920 |
HSG 260/3 |
3,0 |
780 |
| HSG 230/4,5 |
4,5 |
1035 |
HSG 260/3,5 |
3,5 |
910 |
4,6 |
M100 |
| HSG 230/6 |
6,0 |
1380 |
HSG 260/4,5 |
4,5 |
1170 |
| HSG 230/8 |
8,0 |
1840 |
HSG 260/6,3 |
6,3 |
1638 |
7,0 |
M200 |
| HSG 230/10 |
10,0 |
2300 |
HSG 260/8 |
8,0 |
2080 |
| HSG 230/12 |
12,0 |
2760 |
HSG 260/10 |
10,0 |
2600 |
9,2 |
M250 |
| HSG 230/18 |
18,0 |
4140 |
HSG 260/15 |
15,0 |
3900 |
13,3 |
M300 |
| HSG 230/23 |
23,0 |
5290 |
HSG 260/20 |
20,0 |
5200 |
14,4 |
M400 |
| HSG 230/32 |
32,0 |
7360 |
HSG 260/30 |
30,0 |
7800 |
20,5 |
M500 |
 |
 |
Special winding
on request |
