Dual Conveyor Parts Selection PLC Workcell with Assembly Task 34-120

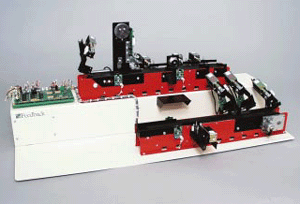

Dual Conveyor Parts Selection PLC Workcell with Assembly Task
    Features
  • Part selection by logical detection
  • Induction and opto-electronic sensors
  • Component sort and assembly
  • Can be interfaced to major PLC types
  • Comprehensive courseware manual

This system can be purchased as an extension to the single conveyor system (34-001 or 34-002) or as dual conveyor system. It extends the parts selection task into a simple assembly process.
Plastic and Metal components are selected by size and the material fed onto chutes for dispensing into a final assembly task where they are combined with the second component.
The finished product is then stored by material type or type of assembly.

The added complexity of this system allows further study of PLCs in process control systems. Students are required to consider in more detail the structure of control systems.
More complex control scenarios can be developed using combinations of timers and counters with master and zone control functions.

The system requires a PLC capable of driving the following inputs and outputs:

    Inputs to PLC
  • Optical Proximity - 6
  • Vertical Gauge - 2
  • Material Detector - 1
  • Start Button - 1
  • Stop Button - 1
    Outputs from PLC
  • Conveyor Motor - 2
  • Gauge Motor - 1
  • Dispenser Solenoid - 4
  • Parts Selector/Ejector - 4
    Curriculum Coverage
  • Fundamentals of Logic
  • Basics of PLC programming
  • Developing Ladder Logic Programs
  • Programming timers
  • Structure of Control Systems
  • Sequencer Programmes
  • Master Control and Zone Control Instructions
  • Programming Counters
  • Jump Instructions and Subroutines
  • Combined Counter & Timer Functions
  • PLC Installation Practices
