Winding Machines & Accessory


Transformers and Motors - Hand Winding Machines
Winding machines for electric motor skein and rotor windings

IT.0463.A



PDF

Winding machine to produce electric motor windings
  • N.1 Faceplate diam. mm 286
  • N.1 pairs of square mandrels mm 14
  • N.2 Pairs of linear arbors with 6 grooves diam. 40/80mm;
  • N.1 Mechanical revolution counter with 5 figures;
  • N.1 Knob for locking of main shaft;
  • Aluminium base
  • Weight net: 5Kg
  • Dimensions: mm 500 x 190 x 310 Optional accessory:
  • Set of straight arbors
  • Set of concentric arbors

  • IT.0463.B



    PDF
    Winding machines for electric motor skein and rotor windings
  • N.1 Faceplate diam. 300mm;
  • N.1 Pairs of square mandrels 14mm;
  • N.2 Pairs of linear arbors diam. 40/80mm with 6 grooves;
  • N.1 Mechanical counter with 5 figures;
  • N.1 Spindle from 1 to 10mm;
  • N.1 Bobbin holder TN for wires diam. 0,10 to 0,40mm;
  • N.1 Bobbin holder column;
  • N.1 Winding shaft diam. 10mm with cones and nut;
  • Aluminium base;
  • Weight net: 10Kg;
  • Dimensions: 570x460x580mm
    Optional accessory:
  • Set of straight arbors
  • Set of concentric arbors
  •

    Transformers Winding Machines
    Layer winding machine to produce medium/low voltage transformers, coils, electromagnets and layer windings




    IT.0461-1


    PDF

    Winding machine for linear windings without wire guide
  • N. 1 simple mechanical revolution counter with 5 figures;
  • N. 1 spindle from 1 to 13mm;
  • N. 1 Winding shaft dia. mm 1o complete with cones and nut;
  • N. 1 knob for locking of main shaft;
  • Aluminium base
  • Weight: 7Kg
  • Dimensions: 530x400x450mm





  • IT.0461-2



    PDF
    Winding machine for linear windings with wire guide
  • N. 1 mechanical revolution counter with 5 figures
  • N. 1 spindle from 1 to 10mm
  • N. 1 bobbin holder T.N. for wires diam. mm. 0.10 - 0.40
  • N. 1 bobbin holder column
  • N.1 winding shaft diam. mm. 10 complete with cones and nut
  • N.1 knob for locking of main shaft
  • Aluminium base
  • Weight: Kg. 8.
  • Dimensions: 570x400x580mm.
  •

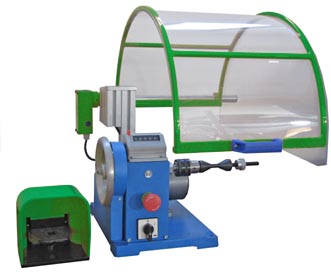

    IT.0461-3



    PDF

    Winding machine for linear windings without automatic wire guide
  • N.1 Simple mechanical revolution counter with 5 figures
  • N.1 Spindle from 1 to 13 mm
  • N.1 Winding shaft diam. mm 10 complete with cones and nuts;
  • N.1 Single phase motor anr rheostat 175W 220V.
  • N.1 Safety guard
  • Aluminium base
  • Weight net: 13Kg
  • Dimensions mm 450 x 400 x 580
    Optional accessory:
  • N.1 Bobbin holder TN for wires diam. 0,10-0,40mm
  • N.1 Bobbin holder column



  •

    Transformers and Motors - Winding Machines Accessory
    Machines for electric motor skein and rotor windings

    IT.0472.Z





    IT.0472.Z1
    Stator holder for coil insertion

    For motors up to 4kW of max. power. Very useful for coil insertion into the electric motor's slot..
  • Max stator weight admitted: 96Kg;
  • Height: 500; Lenght 130mm ;
  • External diameter: 420mm ;
  • Internal useful diameter: 350mm;
  • Weight Kg 10
    IT.0472.Z2
    For motors up to 10kW. Very useful for coil insertion into the electric motor's slot..
  • Max stator weight admitted: Kg 160;
  • Height: 900; Lenght: 700mm;
  • External diameter: 600mm;
  • Internal useful diameter: 600mm;
  • Weight 70Kg

  • IT.0473


    Manual coil extraction set
  • Consisting of a sturdy frame with stator clamping devices
  • Extraction via a hand lever with pivot
  • For the clean extraction of stator windings with minimal damage to the laminations
  • Supplied with one set of extraction tongs
  • For maximum stator diameter of 400mm
  • Dimension 900 x 600 x 170 mm
  • Weight 170Kg




  •
    IT.0474




    Stator Cut off Machine
    Quick and effortless removal of the heads of stator coils
  • Stator clamped internally and centrally
  • 2-speed motor
  • Manual height adjustment
  • Supplied with one adaptor for discs with 6 mm bore
  • Stator bore 50-280 mm
  • Comprising special self-centering stator clamp which is rotated as the stator head is cut.
  • Hand crank adjustment for cut-off motor height
  • Stator height up to 350 mm
  • Excellent method to cut-off the end windings of stators prior to extraction
  • IT.0475




    Coil Inserting Stator Machine
    Hank inserting machine for coilings of electric motors, for the repair and construction of small series. The inserting machine allows the insertion of hanks in stators, having a size of MEC - IEC 56-132 (Kw 0,09-:-9) without using tools constrained to the laminations block.
    For a MEC 90-36 stator 4 pole slots 8-1012 coiling pitch, six slots at a time could be inserted simultaneously. The total coiling time for each stator is of 10-15 minutes.
    Furthermore, the machine allows the insertion of hanks in special motors in which the excessive length of the stator block and its small internal diameter do not allows otherwise the operator to proceed manually.
  • Weight: 210 Kg


  • For any request please send an e-mail to italtec or fax to the N. +39 02 90 720 227.-
