Electrical Plants
Training system for domestic and industrial installation, intercom systems, alarm systems and access control
Civil / Industrial, Automation / Plc Plants

DIDACTIC JOBS
- To show to students all basic civil, industrial, electric circuits and automations;
- To put the students in condition to design, realize and test the studied plants;
- To realize some automations with P L C;
- To make some consideration about technical and economic advantages proceeding from the realization of an plants compared with another one, considering the safety factor and the principles and the laws in force in the sector of civil and industrial plants.

LABORATORY-WORKSHOP COMPOSITION
The workshop of the electric plants is composed by vertical benches available in 2 or 4 places.
On these benches the students can use several type of panels to execute the scheduled experiences of the program.
The panels, where the students work, are interchangeable and they can be kept in proper cabinets useful only in the case that the lesson is not enough to finish the plants and therefore, it is necessary to continue it in the following days.
Panels are provided for domestic plants and flush mounted system, remote control, industrial and electropneumatic plants.

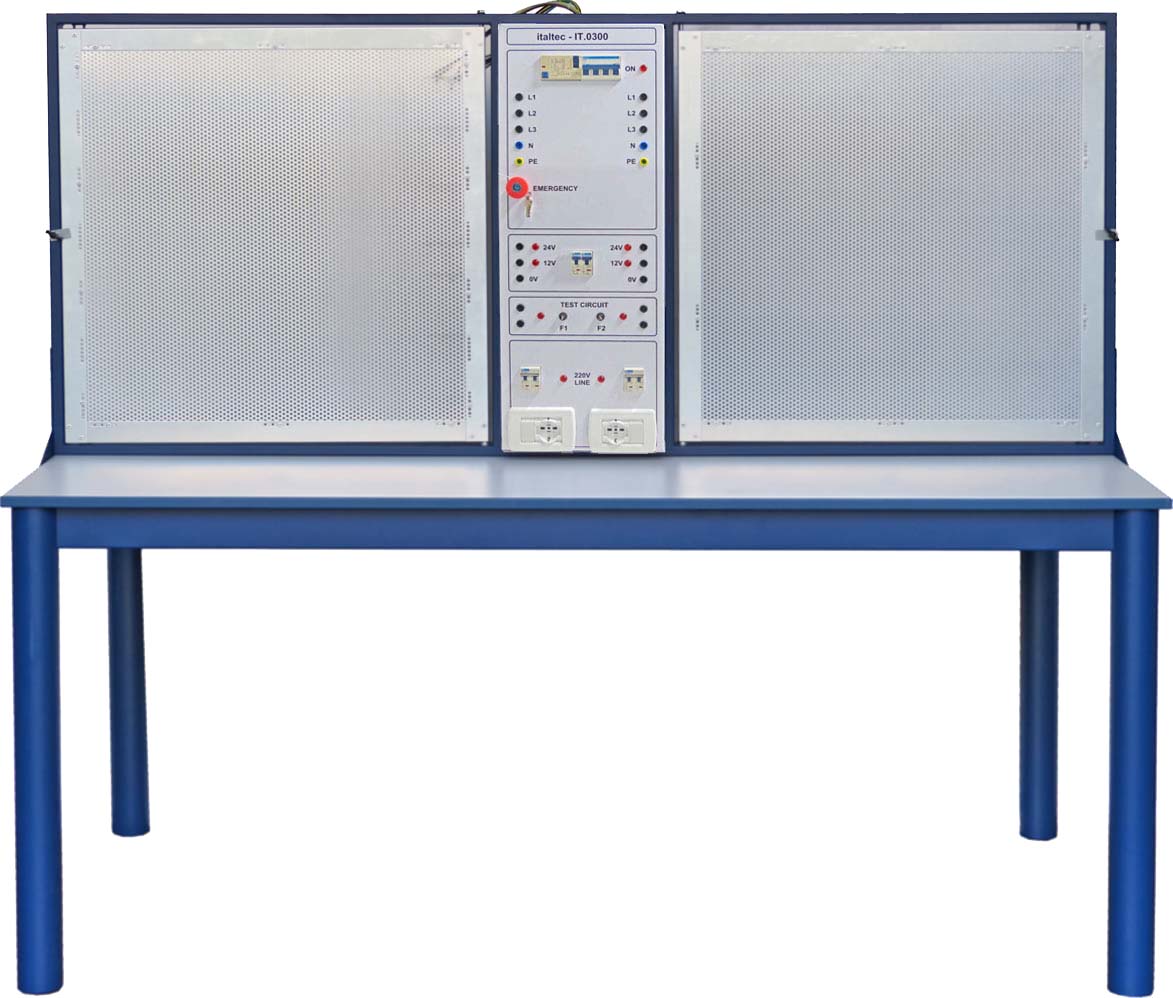

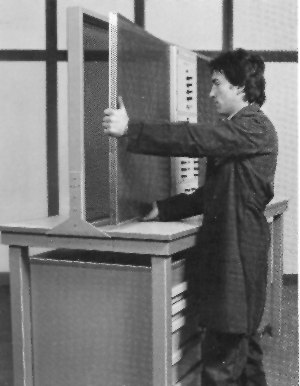

IT.0300.IE - 4 PLACES VERTICAL BENCH

For pratical exercises on electrical plants.
It is made by a bench with a vertical frame which can contain 4 pannels for pratical exercises and a central vertical powered desk.
Dimensions' bench: cm. 200x100x180cm.h.
The desk provides the following outputs for each front:
- 2 three phase lines (220 o 380V) 16A +N +PE, on 32A CE safety insulated terminals;
- Single phase voltage 220V on 2 safety sockets 10/16A + PE, with back safety sockets
- 2 low voltage lines 12, 24V insulated from mains by a separator transformer with electrostatic circuit breakers, one for 12V and the other for 24V.
- double 12V optical and acoustic circuit tester insulated from mains by a separator transformer with electrostatic shield.
PROTECTIONS:
Differential magneto-thermal circuit breaker.
Emergency push-button and keys consent to be independent for each front.
Automatic switches with automatic release in case of lack of voltage with restore under key.
Automatic magneto-thermal also on the low-voltages.

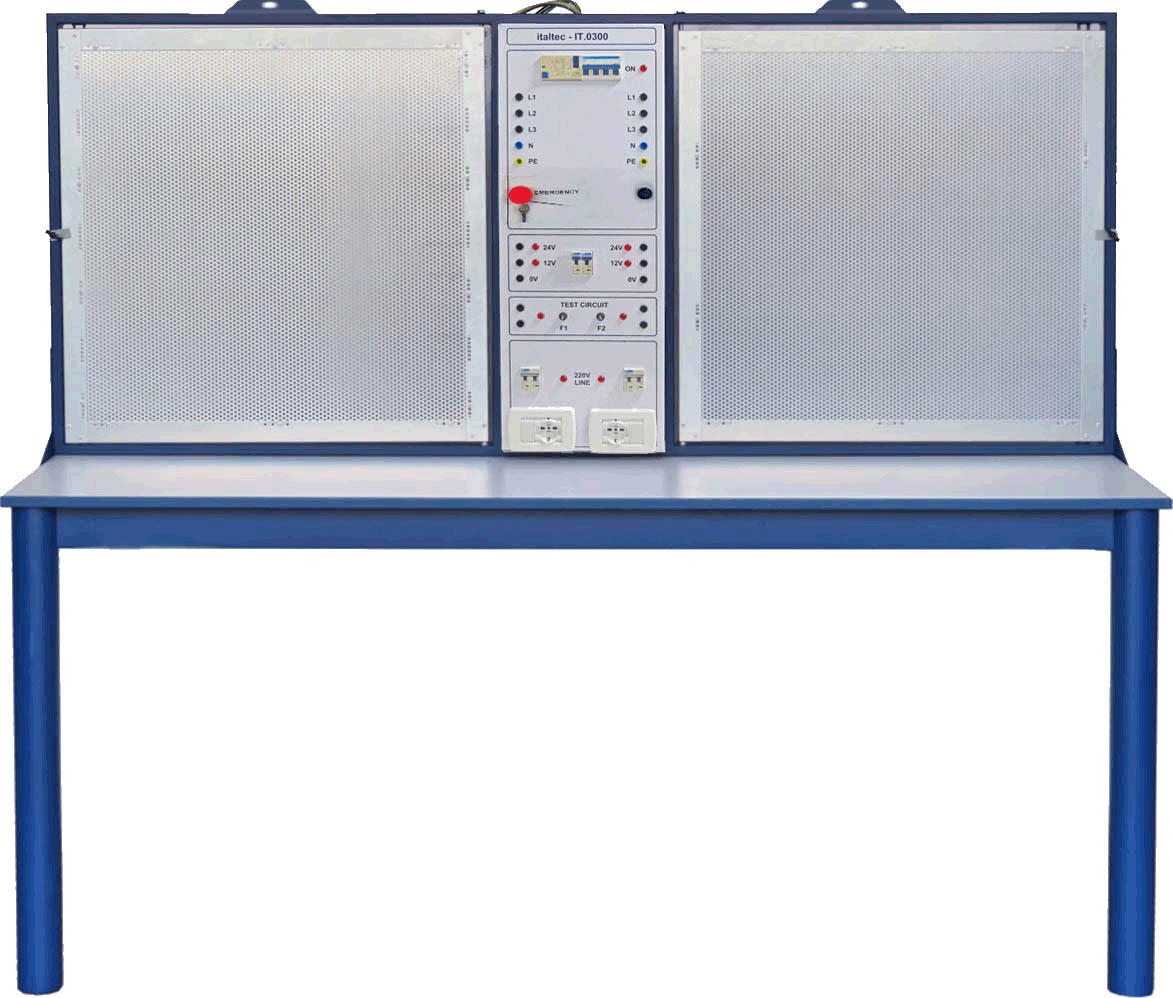

IT.0302.IE - 2 SEATS VERTICAL BENCH

It is composed by a basic bench and a vertical metallic structure which contains 2 panels for exercises and a vertical,side, two-faced power supply.
Dimensions 120x100x180cm.h.

IT.0302.IE - 2 WORK-PLACES VERTICAL BENCH It is composed by a bench with a vertical frame, which can contain 2 panels for practical exercises, and a side vertical powered desk (two-faced).
Dimensions 120x100x180cm.h.
The desk provides the following outputs for each front:
1 three phase lines (220 o 380V) 16A +N +PE, on 32A CE safety insulated terminals;
Single phase voltage 220V on 2 safety sockets 10/16A + PE, with back safety sockets.
1 low voltage lines 12, 24V insulated from mains by a separator transformer with electrostatic shield, available on 20A insulated terminals and protected with two independent magneto-thermal circuit breakers, one for 12V and the other for 24V.
12V optical and acoustic circuit tester insulated from mains by a separator transformer with electrostatic shield.
PROTECTIONS:
Differential magneto-thermal circuit breaker.
Emergency push-button and keys consent to be independent for each front.
Automatic switches with automatic release in case of lack of voltage with restore under key.
Automatic magneto-thermal also on the low-voltages.

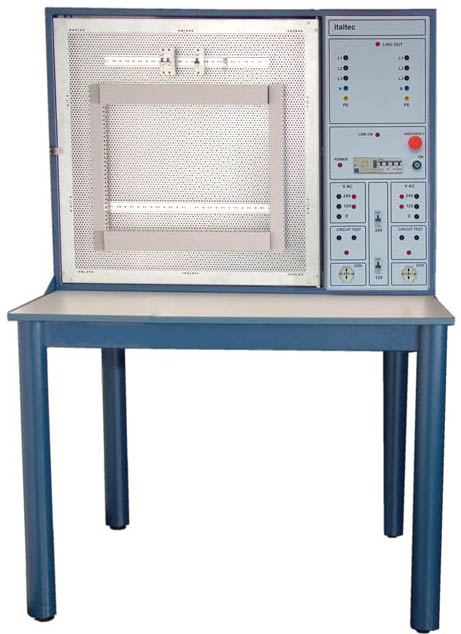

IT.0304.IE - 2 WORK-PLACES WALL BENCH

Metallic frame that could be fixed on the wall (with the proper supplied hooks); the frame can contain 2 panels for practical exercises and a central vertical powered desk for two students.
Dim. 200x25x100(h)
The frame is supplied with a suitable shelf, where the tools can be placed, with dimensions: 200 x 30 cm,

The desk provides the following outputs for each front:
1 three phase lines (220 o 380V) 16A +N +PE, on 32A CE safety insulated terminals;
2 single phase voltage lines 220V on 2 safety sockets 10/16A + PE, with back safety sockets
1 low voltage lines 12, 24V insulated from mains by a separator transformer with electrostatic shield, available on 20A insulated terminals and protected with two independent magneto-thermal circuit breakers, one for 12V and the other for 24V
12V optical and acoustic circuit tester insulated from mains by a separator transformer electrostatic shield.
PROTECTIONS:
Differential magneto-thermal circuit breaker.
Emergency push-button and keys consent to be independent for each front.
Automatic switches with automatic release case of lack of voltage with restore under Automatic magneto-thermal also on the low-voltages

IT.0310.IE
Wooden PANEL designed for domestic electric plants

Wooden made, 20mm thickness.
Dimensions 800x800 mm.
Unthreadable and turning.
IT.0315.IE

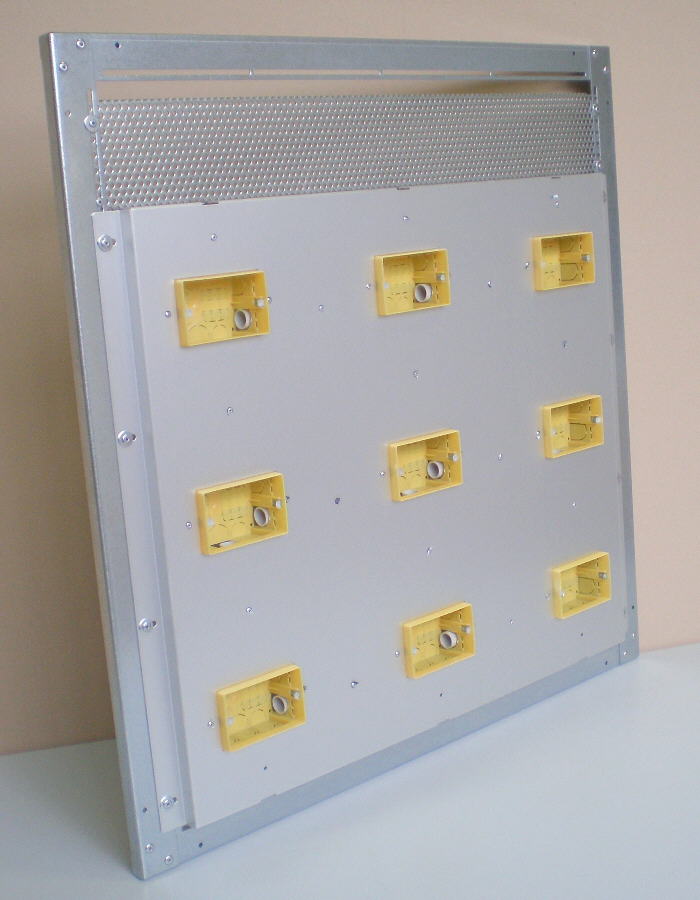

PANEL for civil plants

Dimensioni 800x800mm. Unthreadable and turning.
Metallic panel with alluminium sheet anodized whith 9 rectangular flushes contains as many rectangular derivation boxes with relative connection tube. The lower part previeuws an omega bar which consents the fixing of other components.

IT.0320.IE

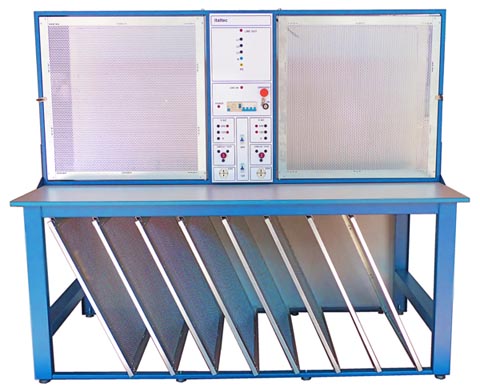

PANEL for electric industrial plants

IT.0320.IE PANEL FOR ELECTRIC INDUSTIAL PLANTS Perforated sheet-steel panel.
Dimensions: 800x800 mm.
Unthreadable and turning.
IT.0325.IE

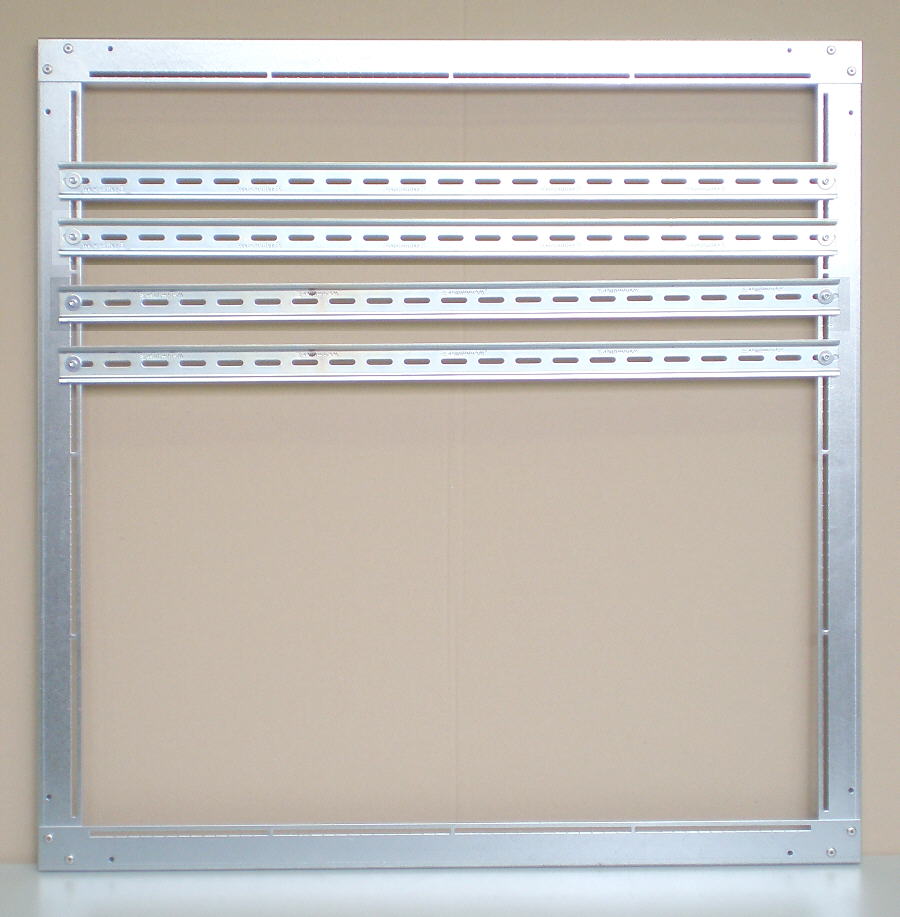

UNIVERSAL PANEL FOR INDUSTRIAL PLANTS

Dimensions: 800x800 mm.
Unthreadable and turning.
Metallic panel made in anodized steel 4 DIN bars
IT.0338.IE
PANEL for the fixing of pneumatic components



PANEL CUPBOARDS

IT.0340.IE

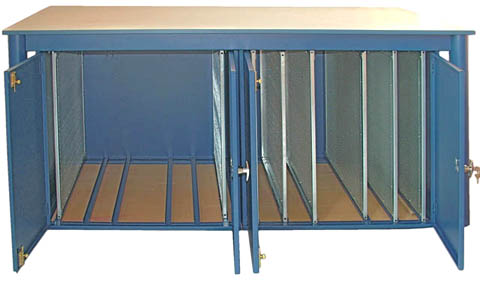

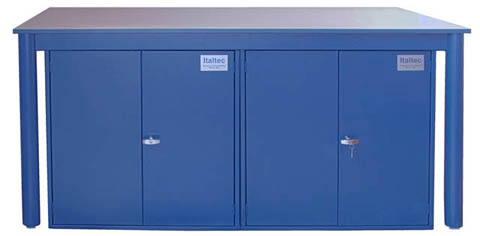

CUPBOARDS FOR 6 PANELS

It can contain 6 panels for industrial or domestic exercises, also with the components mounted.
In this way the student can go on with the exercise in another lesson.
It has two wings with lock-key and the distance between the panels is 120 mm.
Dimensions: 1000x900x900mm.

IT.0341.IE
OPEN TYPE CUPBOARD FOR 12 PANELS
It has two floors with metallic bars that allow to insert and slide easily the panels.
Dim. 1000x900x2000mm.(h)

IT.0350.IE

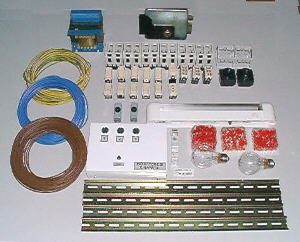

KIT FOR ELECTRIC CIVIL PLANTS

It includes all the components necessary to carry out the program of practical exercises.
It is possible to carry out the following exercises:
Incandescent lamp - control from one point


Incandescent lamp -control from two points
Incandescent lamp -control from three points
Incandescent lamp -control from four points
Incandescent lamp -two lamps controlled by a switch
Incandescent lamp -control from more points by switch relay
Fluorescent lamp - control of a lamp with hot cathode
Staircase light - plant with time relay
Ringing - control from more points
Optic and acoustic signalling between offices, with "Enter/wait" and storey indication
Electric lock - control of electric lock with ringing per block of flats.
A comprehensive exercise book is supplied with the kit in order to obtain the max. of training validity.

IT.0360.A/S
KIT FOR PRACTICE ON INDUSTRIAL PLANTS

It is composed by:
- no.100 100mm strips
- no.100 buttonhole 4mm red
- no.100 fork 4mm red
- no.1 reversing switch
- no.1 star/delta switch
- no.1 switch 3P x 12A 0-1
- no.1 automatic magneto-thermal switch 3P+N
- no.1 100mt brown cable 1,0mm
- no.1 100mt black cable 1,0mm
- no.1 100mt yellow/green cable 1,5mmq
- no.1 holder for 6 push-buttons
- no.1 holder for 6 lamps
- no.1 contactor NC
- no.3 contactor NO+NC
- no.2 red push-buttons
- no.1 green push-buttons
- no.1 yellow push-buttons
- no.1 4 position relay 230V AC
- no.1 socket for relay
- no.1 perforated sheet-steel strip
- no.2 orange pilot lamp 220V
- no.2 red pilot lamp 220V
- no.2 green pilot lamp 220V
- no.1 thermal relay
- no.3 contactor 4P 220V AC 20A 3NC+1NO
- no.4 instantaneous auxiliary contactor 1NC+1NO
- no.1 additional timer switch
- no.1 rectifier bridge 1PH 10A 600V
- no.2 limit switch
It includes all the necessary components to carry out the program of practical exercises.
The components are of industrial type and can be mounted on panels type 0320-0325
The connections are made as in the real plantss.
The practical kit allows to teach practically the student to realise the wiring of the plant



IT.0361.IE
MOTOR FOR STARTER TEST STAR-TRIANGLE

Voltage: 380/660V, or 400/690V, Power 1Hp

IT.0361.C

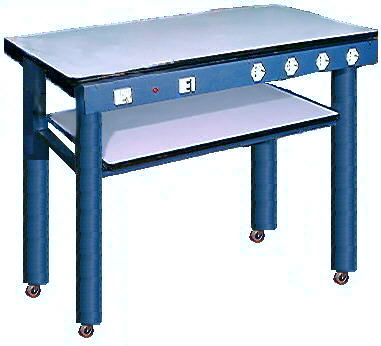

ELECTRIFIED CARRIAGE FOR LABORATORY

For the mouvement of the instrumentations.
Under the carriage there are one automatic switch and ten electric sockets.
Dim. 1200x700x900mmh.
