0700 - Electronic Laboratory Bench |
||
|
Technical Characteristic: Workshop bench which allows two student to realise the works in practical electronics. Standard dimensions bench cm. 200 x 100 x 65-90 (h). (Any other dimension on request.) Sectional-steel made frame mm.80x20, rust-resistant and epoxy oven-varnished without solvents. Cylindrical legs diam. mm 80 x 20 with levelling-feet that allows the adjustment on irregular floors. Worktop laminated wooden made, PVC rimmed with wrap-around corners.Admissible loads without any warping: 800 kg Bench weight, without accessories: 68kg. |
 General circuit breaker 10A, with differential section 0,03A. Two metallic drawers with key locked. Desk dimensions LxPxH): 100 x 25 x 35cm. |
|

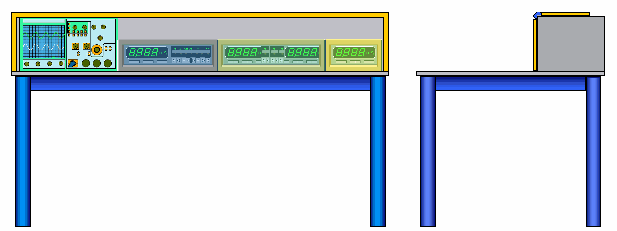

0701-01 - Electronic Laboratory Bench |
||
This bench can be equipped with power supply, oscilloscope, functions generators, bench top multimeters.
| Instruments | Charachteristics |
| Triple Power Supply | 2 x 0-30V; 2 x 0-3A; 1 x 5V-5A |
Function Generator |
0,2 à 2,2MHz; 20V/600Ohm; Sinus, Square, Triangle; Frequencymeter. |
| Multimeter RMS | AC - CC, CA+CC RMS; 20.000 Pts; V - I - Ohm |
| Oscilloscope | 2 x 30MHz; 5mV 20V; 100nS à 0,2 s/cm. |

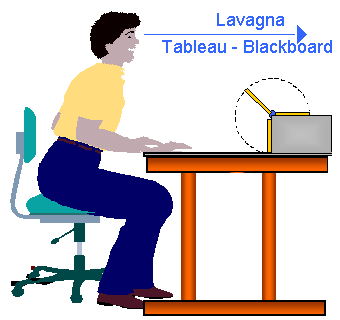

 | Clear
view on blackboard The enclosed meters can be easiest removed for maintenance. Cylindrical legs diam. mm 80 x 20 with levelling-feet that allows the adjustment on irregular floors. Standard dimension of working surface: 200 x 100 cm. General circuit breaker 10A, with differential section 0,03A. Option Possibility to equip the bench with one or two transparent tip-up doors with key-lock. |
|---|
